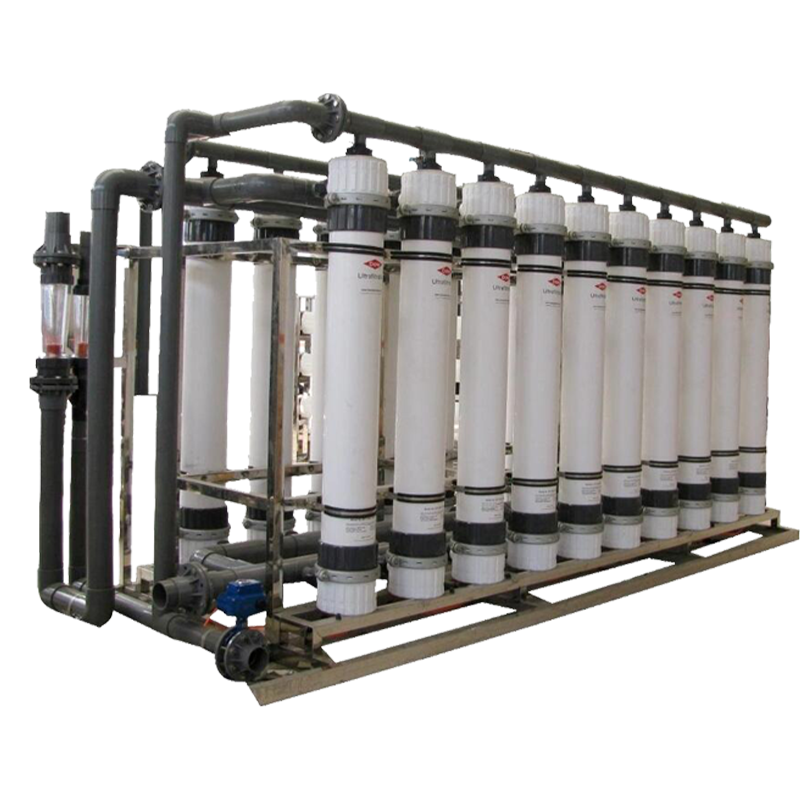

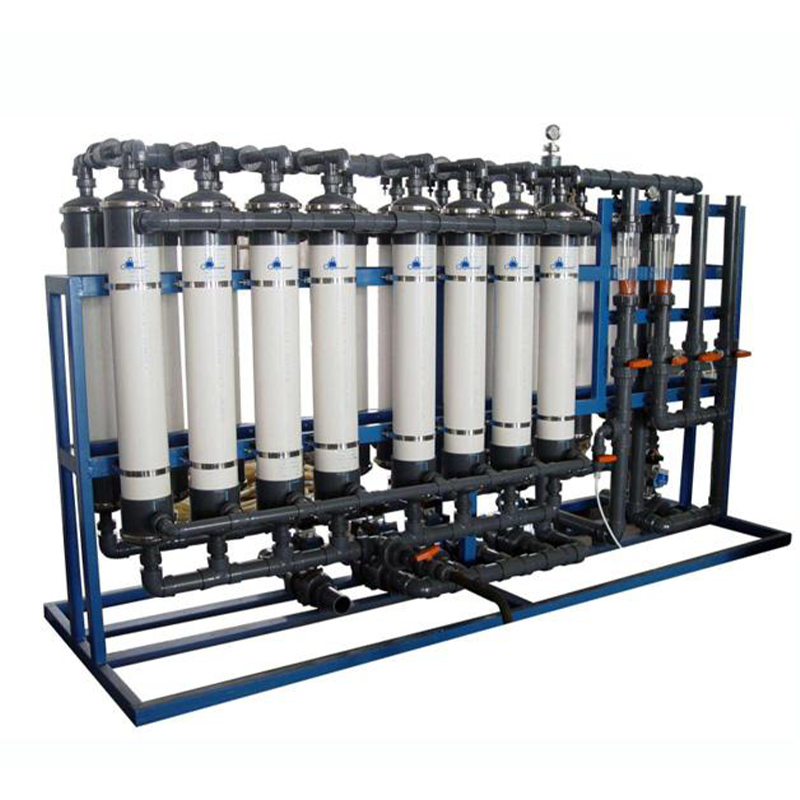

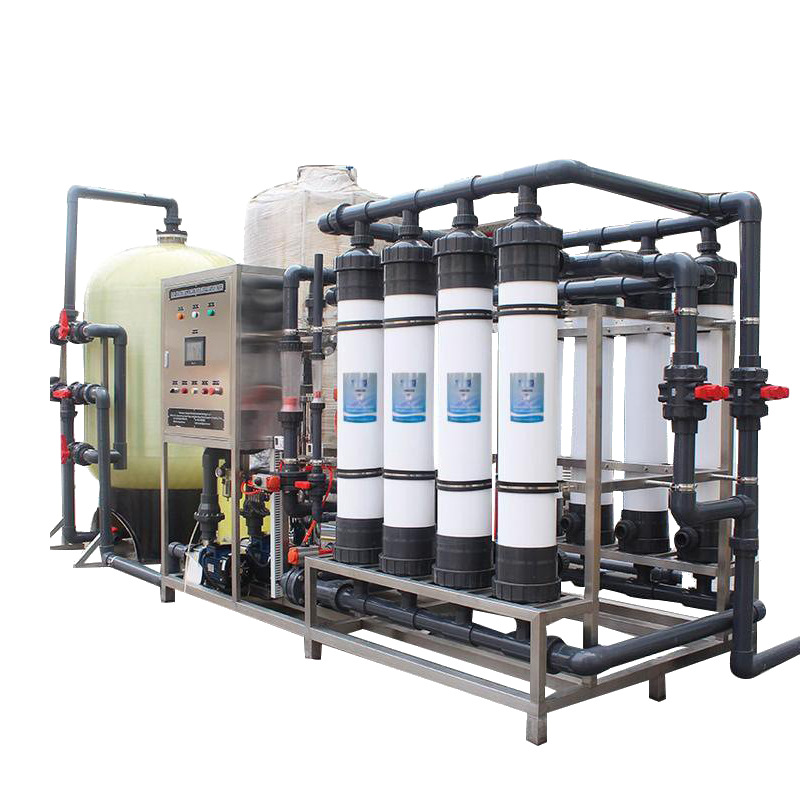

Ultrafiltration system

Ultrafiltration (UF) is a process that uses semi-permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, submicron colloidal matter, color, nitrate and bacteria from water. Feed water is delivered under pressure through the semi-permeable membrane, where water permeates the minute pores of the membrane and is delivered as purified water called permeate water. Impurities in the water are concentrated in the reject stream and flushed to the drain is called concentrate water. Ultra-filtration is a membrane separation technology that can purify and separate a solution.

Application:
UF water purification equipment is used in Food industry, beverage industry, dairy industry, biological fermentation, biomedicine, pharmaceutical chemical industry, biological preparations, traditional Chinese medicine preparations, clinical medicine, printing and dyeing wastewater, food industry wastewater treatment, resource recovery and environmental engineering.

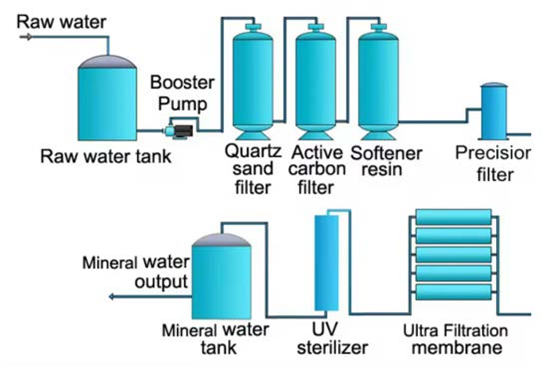

Working Process:
Raw water→ Raw water tanks(buyer supply) →Raw water pumps →Quartz sand filter→ Activated carbon filter →Water softener→5μm security filter→Ultrafiltration device → Pure water tank(buyer supply) →Water supply point
